GSC energy saving easy operation scrubbing machine for mining

Short Description:

  https://www.cnsdgt.com/uploads/sand-washer.mp4 Quick Details: Applicable Industries: Energy & Mining                                                                                          Local Service Location: None Showroom Location: None                                                                                                                Condition: New Type: Sprial Separator, Double Spiral                                                                       ...


Product Detail

Product Tags



Quick Details:

Applicable Industries: Energy & Mining

Local Service Location: None
Showroom Location: None

Condition: New
Type: Sprial Separator, Double Spiral

Production Capacity: 98%
Place of Origin: Shandong, China

Brand Name: guote
Voltage: 220v

Dimension(L*W*H): different model
Weight: different model

Certification: ISO9001 CE
Warranty: 1 YEAR

Marketing Type: Hot Product 2019
After-sales Service Provided: Video technical support, Online support, Field maintenance and repair service, Engineers available to service machinery overseas
Machinery Test Report: Provided

Video outgoing-inspection: Provided
Warranty of core components: 1 YEAR

Core Components: Motor
Key Selling Points: Automatic

Product name: Sand Washing Machie
Company: Weifang Guote Mining Equipment Co.,Ltd.

Keywords: Stone Washing Machine
Application: Sand Washing

Usage: Remove Dirty Soil
Installation: Engineer Guide

Material thickness: 0-5mm
Volume: 1-8.4cubic metre
GSC2
Product Introduction:This equipment is mainly used for the dispersion of sludge, mineral surface impurities and scrub cleaning. Advantages :1. Scrub strength, unique structure of the tank and impeller configuration, than the same specifications scrub machine scrub strength increased by about 30%.

2. Wear-resistant corrosion-resistant, tank lining, impeller wear-resistant materials are used, with high anti-corrosion wear performance.



GSC3





Working principle:

The slurry enters into the scrubber cavity through the feed pipe, and under the strong stirring effect of the impeller, the slurry produces violent turbulence. Minerals have a huge momentum in them, and produce intense friction and collision with each other. Impurity film wrapped in the surface of the mineral particles due to the intensity is not large, after friction and impact can easily be stripped out of the mineral surface. The mineral surface cement soaked in water and then through the strong mutual friction between the particles, the collision will be loose, broken solution, so as to achieve the separation of clay and mineral particles. These thin film impurities and clay break down and fall into the pulp, which can be separated after subsequent desliming. In the actual production process, but also according to the actual situation of the mineral add different agents.



GSC4



Technical parameter:



model volume m³ feed granularity mm slurry concentration % motor kw  weight kg
GSC1-1 1 0-5  <65  15  1222
GSC1-2 2  0-5  <65  15*2  2410
GSC2-1 2  0-5  <65  37  3200
GSC2-2 4  0-5  <65  37*2  5300

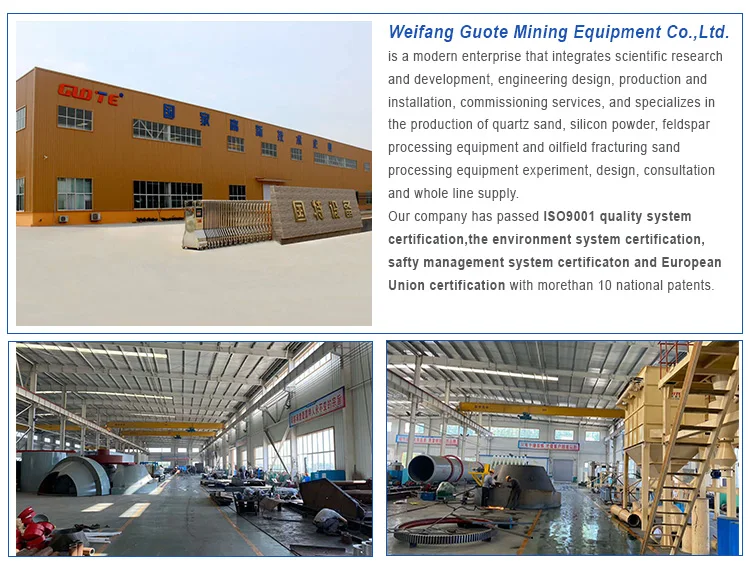

Company Information:







Certifications:







Our customers :





Our Services

1.EPC service for single equipment and whole production line.

2.OEM service for your personal equipment or production line

3.Testing before delivery  and Pretesting in working site until get qualified products

4.24hours for technical Operation Guide and  4hours offer technical proposal for problem shooting.



Packaging & Shipping:



FAQ



Q: Why we believe in Weifang GuoteMining Equipment  Company?
A: 1. More than 10 years experience.
Q. We are the leading professional supplier of mining equipments and service for quartz mining equipment industry.
A. All products achieved ISO9001:2000 quality management certificate and EU CE certificate.



Q: Delivery time
A: The lead time is 10-30 days, delivery time will vary depending on the type of the machine, shipping method selected and part availability.



Q: Payment terms
A: Accepted Payment Type: T/T, L/C, Western Union, Cash.
After sign the contract, pay the 30% deposit of total purchase price and pay the full payment before delivery.



Q: What will you do if the machine is broken down?
A: The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.



Q: What should I do if I want to get a best quotation?
A: If you want a suitable type for you, please let us know your material and capacity.



Contact Us:
E-mail: cnguote@163.com
Wechat/WhatsApp:+8613280343396
